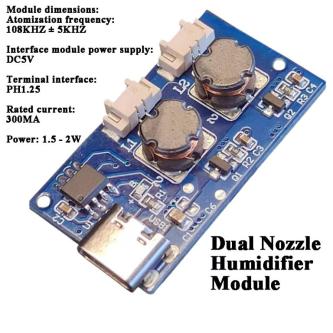

Dual Spray Humidifier Module DIY Atomizer Driver Board …, Geylang

Specifications (Module):

Type: Ultrasonic humidifier driver board (1-to-2 atomizer module)

Function: Supports dual atomizer discs for large mist volume

Applications: Plant watering, DIY humidifier, aroma diffuser, cooling mist projects

Operating Voltage: 5V DC

Output Control: 1-to-2 dual mist sprayer support

Usage: Directly connect to atomizer plates and power supply

Specifications (Atomizer Disc):

Type: Ultrasonic microporous atomizer plate

Driving Voltage: DC 5V

Resonant Frequency: 108–110 kHz ± 5 kHz

Rated Power: 2W

Aperture Size: 4–5 μm

Number of Holes: 800

Silicone Sleeve Outer Diameter: 20 mm

Rubber Ring Thickness: 3 mm

Metal Disc Diameter: 16 mm

Wire Length: 100 mm

Connector Type: PH 1.25 terminal

Weight: 1.92 g

Features:

Dual-spray design with large mist output for efficient humidification.

Stable ultrasonic atomization with low power consumption (2W).

Easy to use: plug-and-play design with standard connector.

Compact size for DIY projects, plant watering systems, aroma diffuser, humidifier repair.

Long service life and consistent mist effect.

Usage Instructions:

Install the atomizer plate into the support bracket with cotton swab.

Connect the atomizer plate to the module atomizer port.

Connect power supply to the module input port.

Press the power switch.

The atomizer will start spraying mist when in contact with water.

Applications:

DIY ultrasonic humidifiers

Plant irrigation / automatic watering

Ultrasonic aroma diffuser

Small mist cooling systems

Educational electronic DIY projects
